Performance Suspension Components
Polyurethane Front End Rebuild Kit - Page 1 of 12
PREVIOUS SUSPENSION DISASSEMBLY NEXT

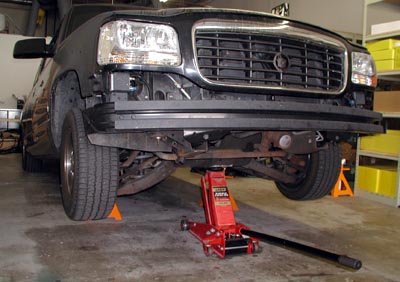

To begin, jack up the truck and place it securely on jack stands. Never work on a truck supported only by a hydraulic jack. This installation will take some time, so we put the truck up on 4 jack stands.

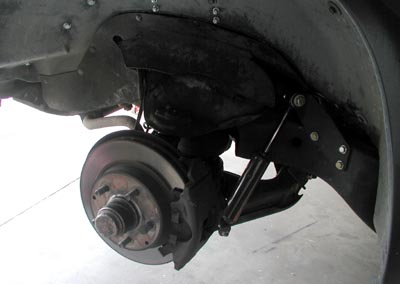

Remove the front wheels. Get ready to start taking the suspension apart. We found it is best to work in stages, starting with one side then moving to the other, one stage at a time.

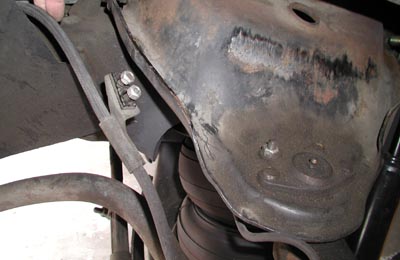

Remove brake line support from the upper control arm.
Remove sway bar end links from the lower control arms.

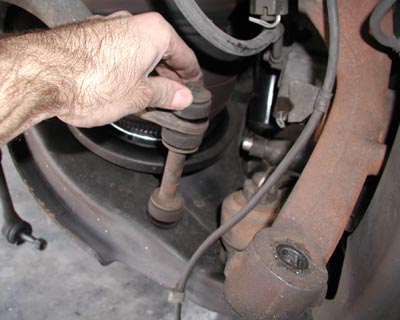

Here are the stock sway bar end links. The rubber is showing signs of age and deformation.
Remove sway bar from frame. Set the bar aside, we won't need it again until the rest of the suspension has been rebuilt.

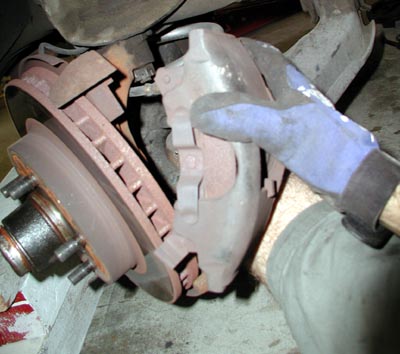

Remove brake caliper. Be sure to set it aside so that caliper does not hang from brake line. Now you can remove the tie rods using the proper tool or pickle fork.
To remove the spindle, remove the cotter pins and loosen the castle nuts. Don't take them all the way off yet. Using a ball joint removal tool or pickle fork, pop the ball joints loose. They will be replaced so do not worry about damaging them.

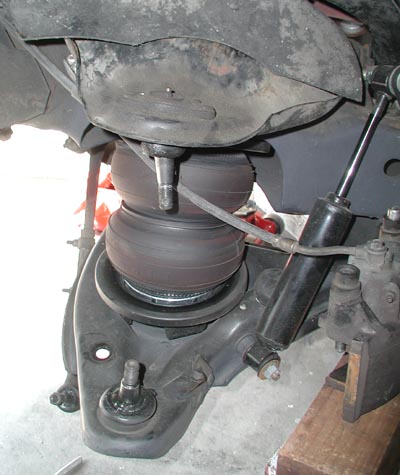

Note: this truck has airbags, if your truck has coil springs you will need to take precautions so that the spring does not suddenly decompress. You can use a coil spring compressor or place a jack under the lower control arm to prevent the spring from ejecting from the truck.
