Suspension Components Polyurethane Front End Rebuild Kit - Page 12 of 12 |
| PREVIOUS | SWAY BAR | Back to the Beginning |
 |

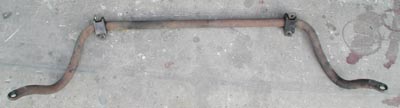

The last part that needs assembly is the sway bar. |
 |

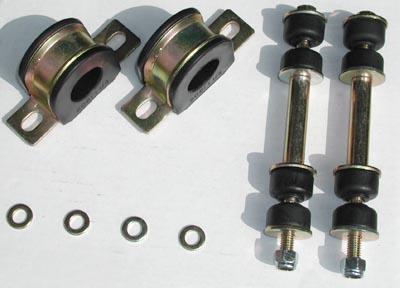

Here are the new sway bar bushings, brackets, and end links. |
 |

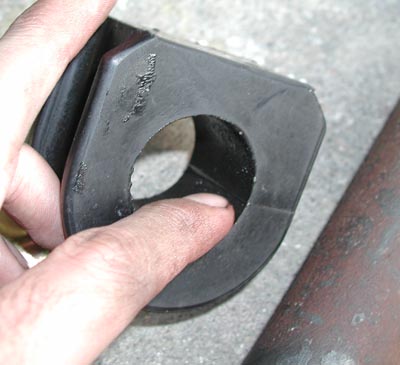

Use supplied grease on the inside the the frame mount bushing. |
 |

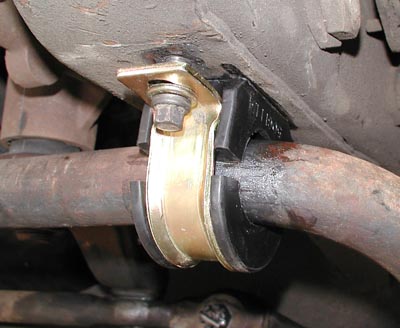

Hold the sway bar in place, and install the bushing using supplied bracket and stock bolt. Torque to spec. |
 |

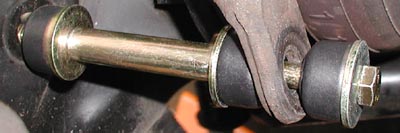

Install the end links. Torque to spec. |
 |
With everything back in place,

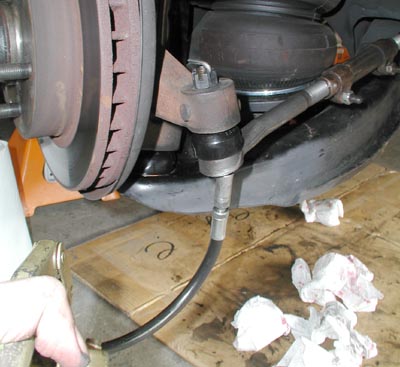

use a high quality grease to lubricate the entire suspension.
Have your truck aligned, and then enjoy you newfound handling capabilities! |
